240V Proving Unit PRV240 – Fluke

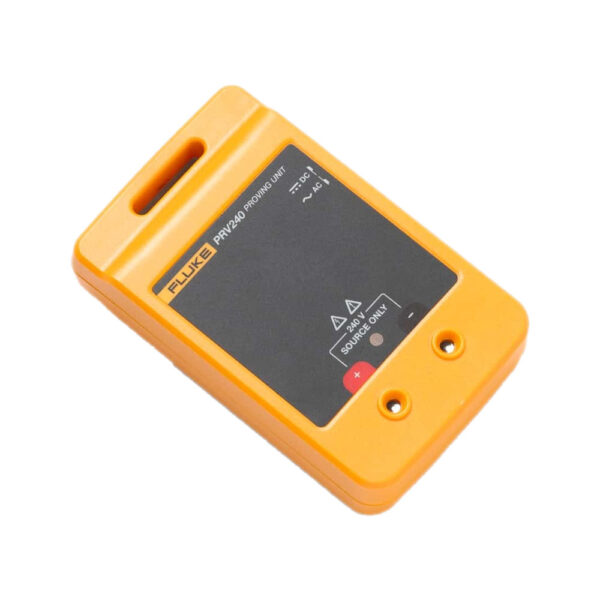

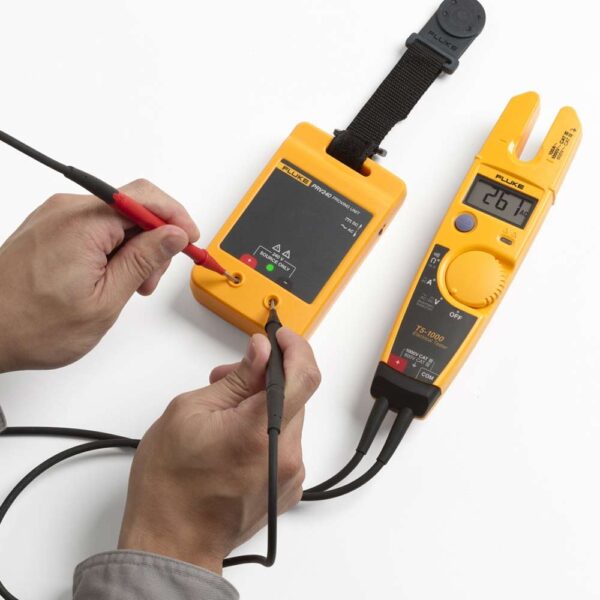

The Fluke PRV240 Proving Unit is a portable, pocket-sized, battery-powered voltage source. It is unique because it sources stable AC and DC voltages for both LoZ and HiZ instruments. The Fluke PRV240 provides a safe method to verify that your electrical test tool is operating properly before and after you conduct any live tests. The concept of “Test Before Touch” (TBT) involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly through the actual measurement.

Key Features:

• Size: 11.7 cm x 7.4 cm x 2.8 cm
• Weight: 230g (inc. batteries)
• Includes:
  • Fluke PRV240 Proving Unit
  • TPAK hanging strap
  • Four AA batteries
  • Quick reference guide
• Sources both AC and DC steady-state voltage – supplies 240 V DC/AC
• Long battery life – 5,000 tests per set of four AA batteries
• A single LED indicates functionality, making this unit a simple-to-use solution for verification of your test tool
• Compatible with both high impedance or low impedance multimeters, clamp meters or two pole testers
• Voltage is sourced through recessed contacts that are activated when tested probes are inserted to avoid accidental contact

Standards:

• IEC61010-1
• IEC61010-2-030
