Modiewark Industrial DC Modielive Kit – G.L McGavin

G.L McGavin’s Modiewark Industrial DC Modielive Kit includes the Industrial DC80 non-contact tester Modielive EMF Generator making this kit designed for direct current detection in industrial environments.

Simply point the DC-80 tester at a potentially live DC source to determine if there is voltage present. The sound it makes will alert you to danger without any need for physical contact. It has 8 adjustable sensitivity settings, meaning the operator can adjust it to voltages from 50 volts to over 1,000,000 volts. The Modiewark Industrial DC Modielive Kit is a must have when working with DC power on, Trains and trams, Sub-stations, Wind-turbines, Solar generation equipment or Mining equipment.

Key Features:

• Industrial DC80 Non-contact DC Tester
  • Length: 225mm
  • Weight: 750g
  • Operating Temperature: -20 to 65 C
  • Voltage Sensing Range: 50 to ∞ VDC
  • Battery Life: 7 Hours
  • Cap Material: ESD POM (Acetyl) Black
  • Handle Material: Polypropylene
• Modielive EMF Generator
  • Size: 185mm x 52mm x 52mm
  • Weight: 450g
  • The Unit produces an EMF (electro magnetic field) which can detected by the Modiewark to prove the Modiewark is working correctly
  • Produces an EMF to allow the Modiewark to be tested at the 500,000 volt setting at a distance of 50 mm
  • Powered by 2 x 9 Volt PP3 Batteries – Allows 2 hours of continuous operation

Standards:

• IEC IP6X

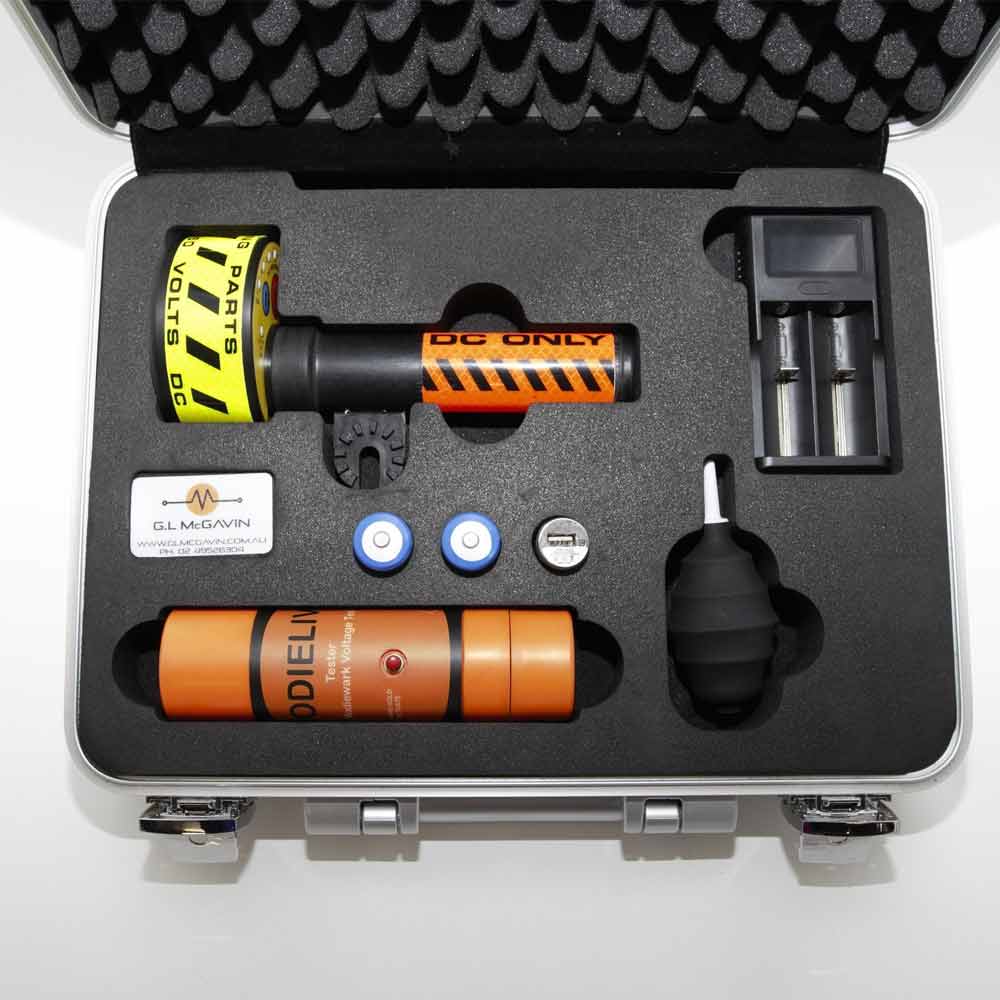

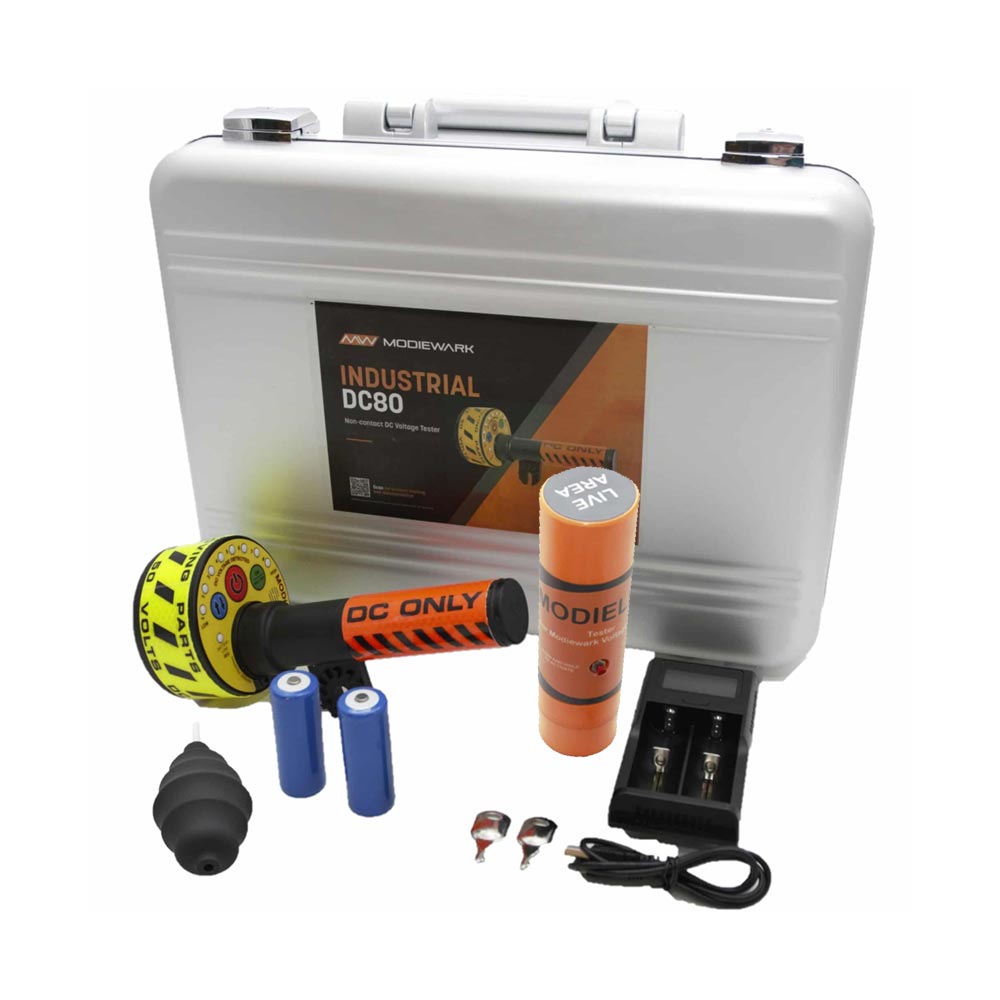

Kit Contents:

• 1 x Industrial DC80 Non-contact DC Tester
• 1 x Modielive EMF Generator
• Batteries and charger
• Padded hard metal carry case
• Air pump
