Multi Function Tester MI 3152 – Metrel

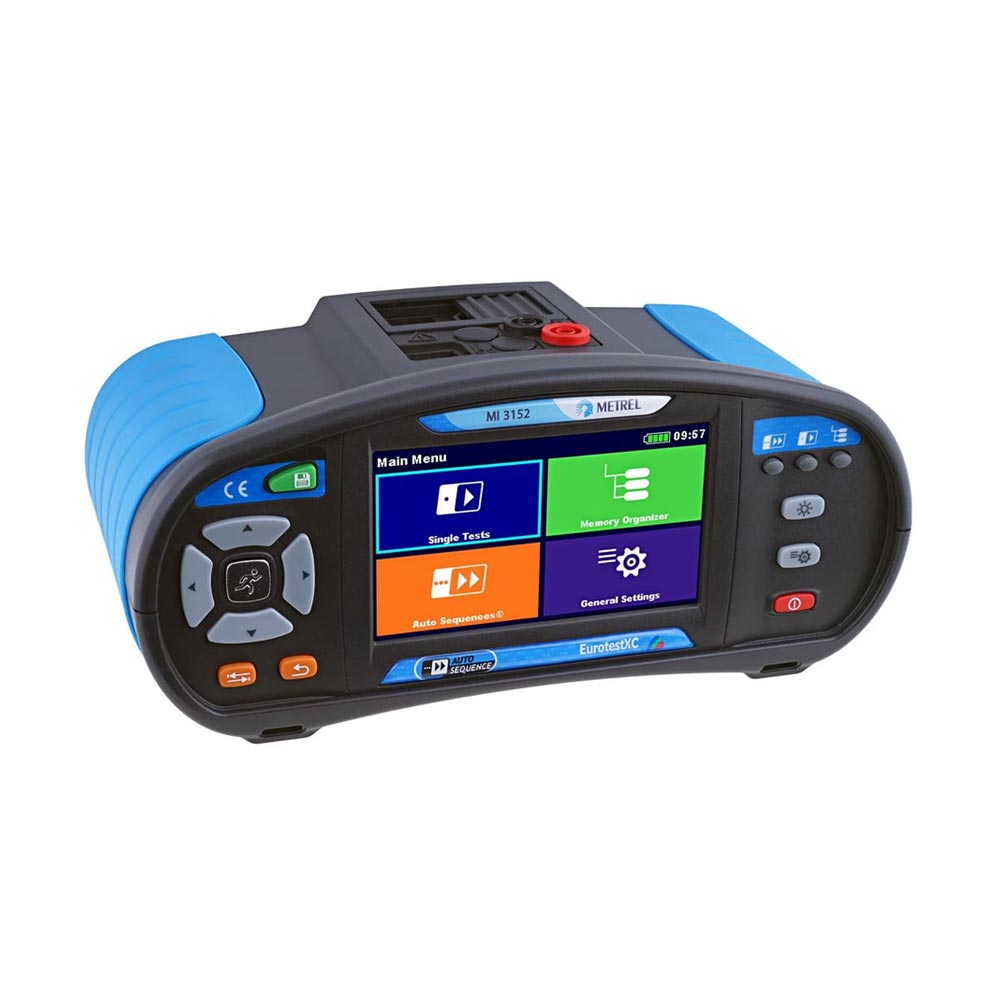

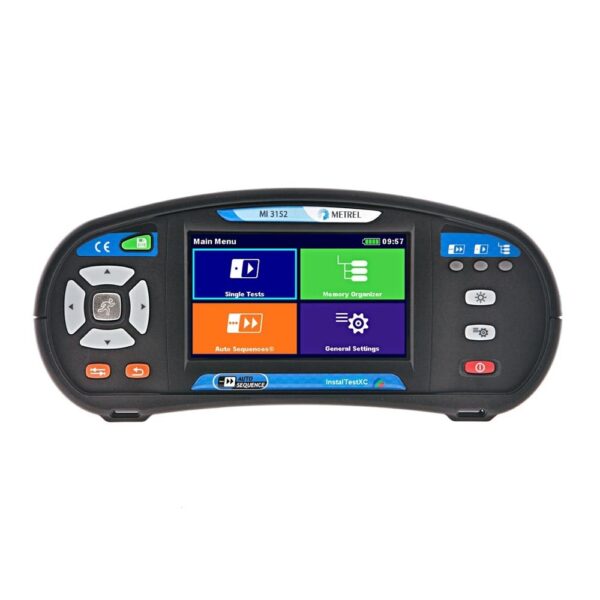

Metrel’s Multi Function Tester MI 3152 InstalTest IT-XC is an advanced multi-functional measuring instrument, designed specifically for testing in industry. The already well known functions like complete installation safety testing according to IEC/EN 61557 and Pre-Programmed AUTO SEQUENCE testing of TN, TT and IT earthing systems are managed by a completely new user interface based on large colour touch screen display. The Multi Function Tester MI 3152 IT-XC is pre-set with AS/NZS3017 limits for pass/fail indication on tests.

Key Features:

• Includes:
  • Instrument MI3152 Instaltest XC
  • Mains measuring cable, 1.5m (AU PLUG)
  • Test lead, 1.5m (brown, blue, green)
  • Test probe, 3 pcs (brown, blue, green)
  • Crocodile clip, 3 pcs (brown, blue, green)
  • Test lead, green, 20m
  • USB cable
  • RS232-PS/2 cable
  • AC adaptor (charger)
  • NIMH rechargeable batteries, AA, 6 pcs
  • Soft carry bag
  • Soft carrying neck belt
  • Quick guide manual
  • ES Manager BASIC reporting software (download)
  • Calibration certificate
• Instrument Dimensions: 230 x 1-3 x 115 mm
• Instrument Weight: 1.3kg
• High resolution colour touch screen, 4.3” TFT
• Insulation resistance with DC voltage from 50V to 1000V
• Built-in fuse tables for automatic evaluation of the line / loop impedance result
• Monitoring of all 3 voltages in real-time
• Automatic polarity reversal on continuity test
• Automated RCD testing procedure
• Barcode scanning of RCD for test/retest for faster testing
• Automated Impedance testing procedure (Z AUTO)
• Functional inspections
• Measurement filtering according  to the selected area group
• Built-in charger and rechargeable batteries as standard accessory

Standards:

• CAT II 1000V
• CAT III 600V
• CAT IV 300V
• IEC/EN 61557-7, 10, 11, 12, 14
• IEC/EN 61010-1
• IEC/EN 61010-031
• IEC/EN 61010-2-030
• IEC/EN 61010-2-032
