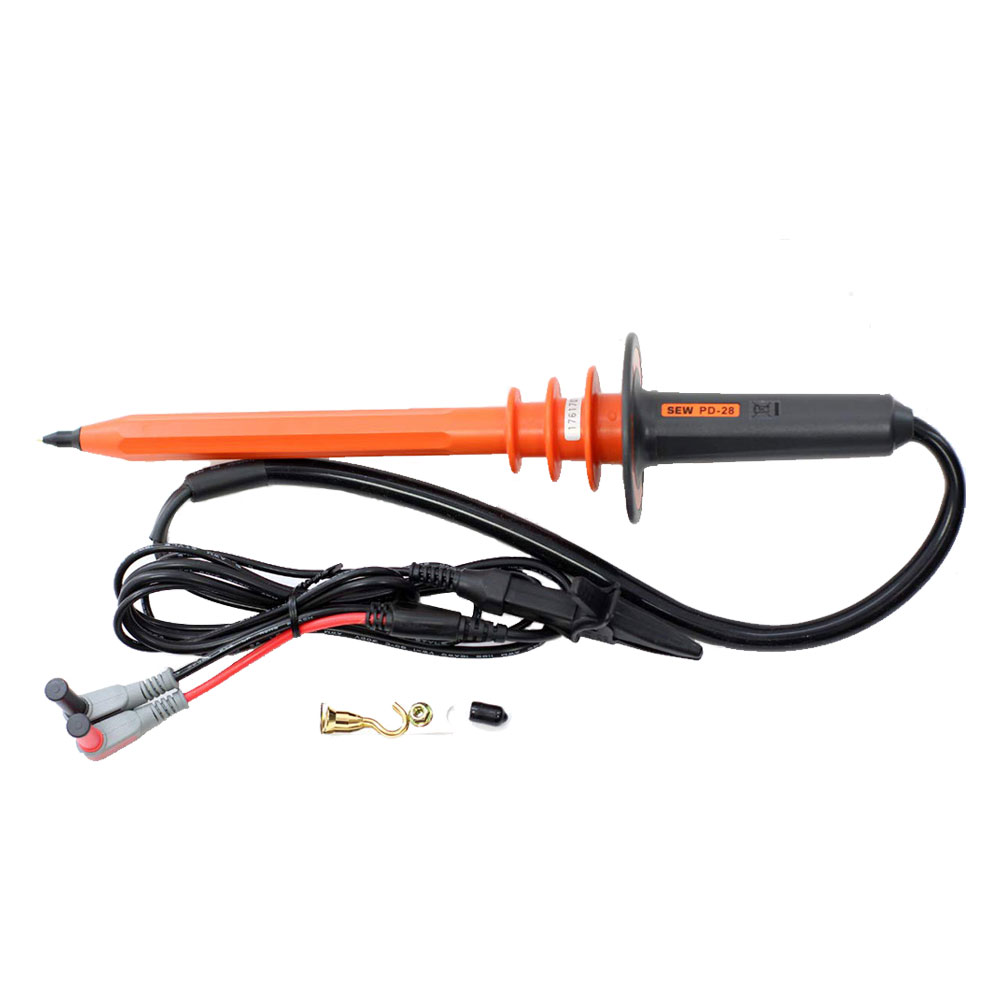

High Voltage Probe PD-28 – SEW
The SEW PD-28 High Voltage Probe is designed to extend the voltage measuring capability of an AC/DC voltmeters to 40,000 volts peak AC or DC Overvoltage Category I. This means the probe can only be used to make measurements on energy limited circuits within equipment. Examples include high voltage within televisions or photo copy machines. The probe stated accuracy is when used with a voltmeter having 10 Megohm input impedance. DO NOT use this probe to measure high voltages on power distribution systems.
Key Features:
- Weight: Approx. 260g
- Max. working voltage: 40kV DC or 28kV AC
- Operating Temperature: 0°C ~ 40°C
- Cable Length: 1 m
- Input Impedance: 1000MΩ
- Measures both AC and DC voltages with digital multimeters that have a 10 MΩ input impedance.
- Is typically used to measure high voltages in TV sets, power supplies and instruments in laboratories.
- Intended for low energy applications only.
- Lightweight and rugged. 2 available contact tips: round needle tip for normal use and a special flat spring-type for CRT anode.
Standards:
- EN 61010-1
- EN 61010-031
- EN 61326-1
