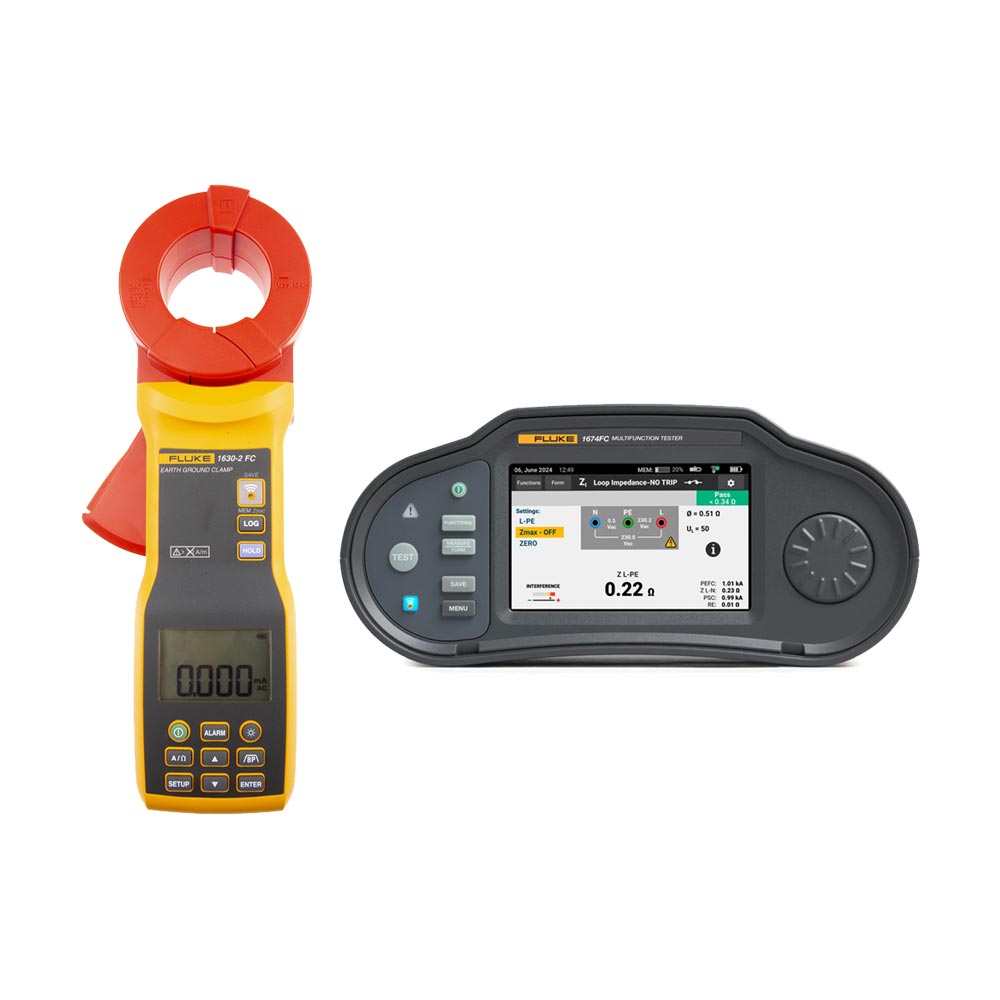

Multifunction Installation Tester 1674 FC and Clamp Meter 1630-2 FC Kit – Fluke

Fluke’s Multifunction Installation Tester 1674 FC and Clamp Meter 1630-2 FC has reliable installation testing and is essential for ensuring the safety, optimal functionality, and integrity of a facility’s electrical systems. With an ergonomic design, seamless user interface, integrated data management capabilities, wireless connectivity, and comprehensive reporting software, the 1670 Series sets the new standard for an integrated installation testing solution.

The rugged design allows you to verify the safety of electrical installations in domestic, commercial, & industrial applications while meeting the requirements of IEC/HD 60364-6 & all relevant local installation test standards. With the Fluke 1674 FC and Clamp Meter 1630-2 FC, you’ll be able to perform your required testing faster & reduce the time you spend on documentation, all while having the ultimate confidence in the data you’re collecting.

Key Features:

• Sizes:
  • 1674 FC: 26.25cm x 14.19cm x 11.93cm
  • 1630-2: 28.3cm x 10.5cm x 4.8cm
• Weights:
  • 1674 FC:1.6kg
  • 1630-2: 880g

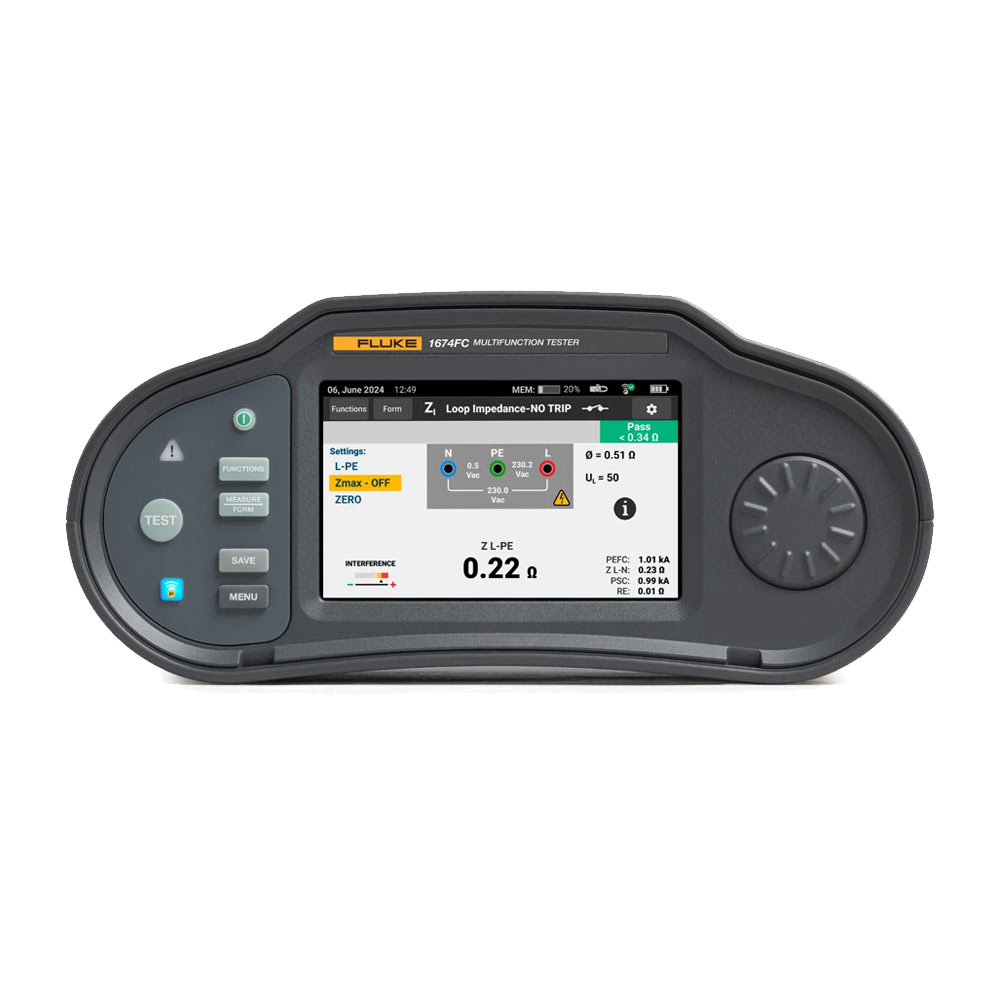

• Multifunction installation tester 1674 FC
  • Insulation Resistance Measurement (RISO): 50V, 100V, 250V, 500V, 1000V
  • Simple bidirectional user interface eliminates complex multi-level menus
  • Easy setup with the full-color touch screen, smart device, or a PC
  • Fast, accurate testing with Auto Test and Automatic Measurement Validation
  • Fluke Connect compatibility eliminates tedious data entry

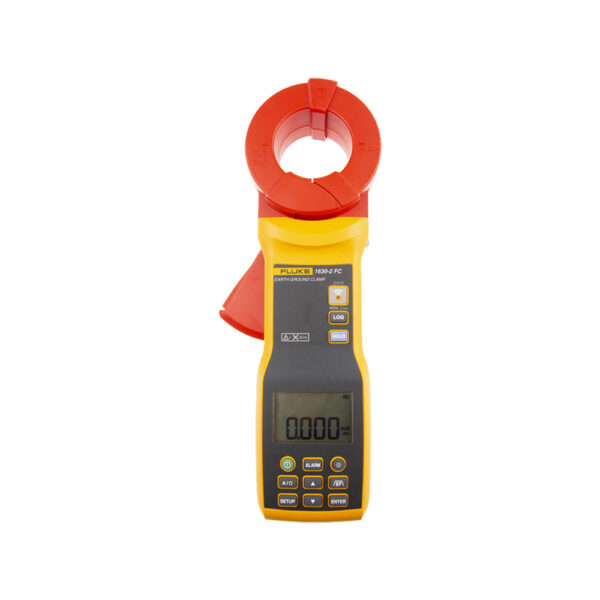

• Fluke 1630-2 FC Earth Ground Clamp
  • Operating temperature: -10 °C to + 50 °C
  • Maximum Voltage to earth ground: 1000V
  • Test the grounding components of equipment in hard-to-reach spaces, including areas that are indoors or fully paved and do not permit driving auxiliary test stakes
  • AC Leakage Current Measurement identifies AC leakage without disconnecting your earth ground stake from the grounding system
  • Rugged heavy-duty clamp jaw stays in alignment and calibration on tough jobsites
  • Logging measurement saves up to 32,760 measurements in memory

Standards:

• CAT III 600V – 1674 FC
• CAT IV 300V – 1674 FC
• CAT III 1000V – 1630-2
• CAT IV 600V – 1630-2
• IEC/EN 61010-1
• IEC 61010-2-030
• IEC 61010-2-034
• IEC 61557-1 to IEC/EN 61557-8
• IEC 61557-10
• IP40

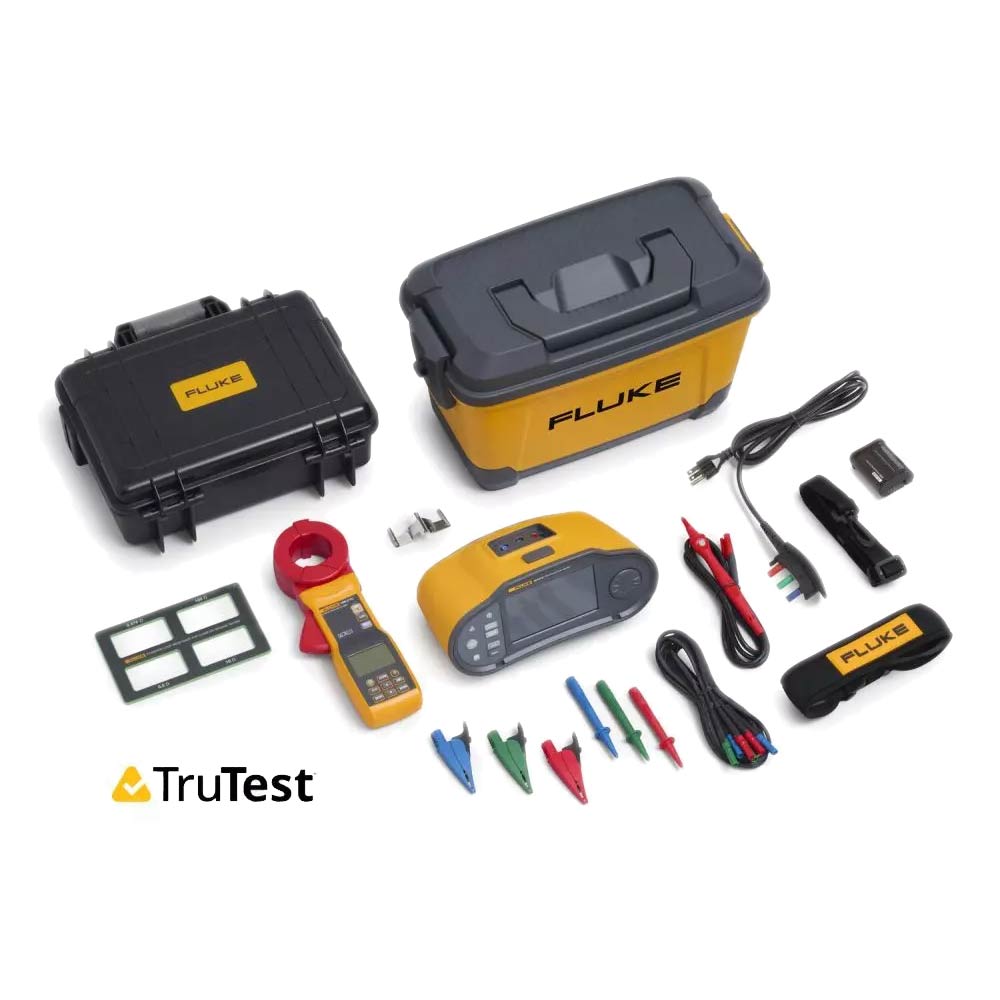

Kit Contents:

• Multifunction installation tester 1674 FC
  • Heavy duty mains cord with single input connector
  • Hard case
  • USB-C Power adapter for charging
  • Remote control probe
  • Hanging strap
  • Zero adapter
  • Test leads and probes
  • Alligator clips
  • Li-Ion battery
  • Fluke TruTest Software
• Fluke 1630-2 FC Earth Ground Clamp
  • Hard case
  • Loop resistance standard
  • 4 AA batteries
  • Safety information guide
  • Quick reference guide
  • Fluke 1630-2 FC Earth Ground Clamp
